The Indian Space Research Organisation (ISRO) on May 9, 2024 achieved a major milestone with the successful hot testing of liquid rocket engine manufactured through Additive Manufacturing (AM) technology.
This achievement marks a remarkable advancement in propulsion technology for space missions.
"The PS4 engine manufactured in the conventional machining and welding route has been in use for the fourth stage of PSLV which has a thrust of 7.33 kN in vacuum condition. The same engine is also used in the Reaction Control System (RCS) of the first stage (PS1) of PSLV. The engine uses the earth-storable bipropellant combinations of Nitrogen Tetroxide as oxidizer and Mono Methyl Hydrazine as fuel in pressure-fed mode and was developed by the Liquid Propulsion Systems Centre (LPSC), ISRO," the agency said.
LPSC redesigned the engine making it amenable to the Design for Additive Manufacturing (DfAM) concept thereby gaining considerable advantages, the ISRO said.

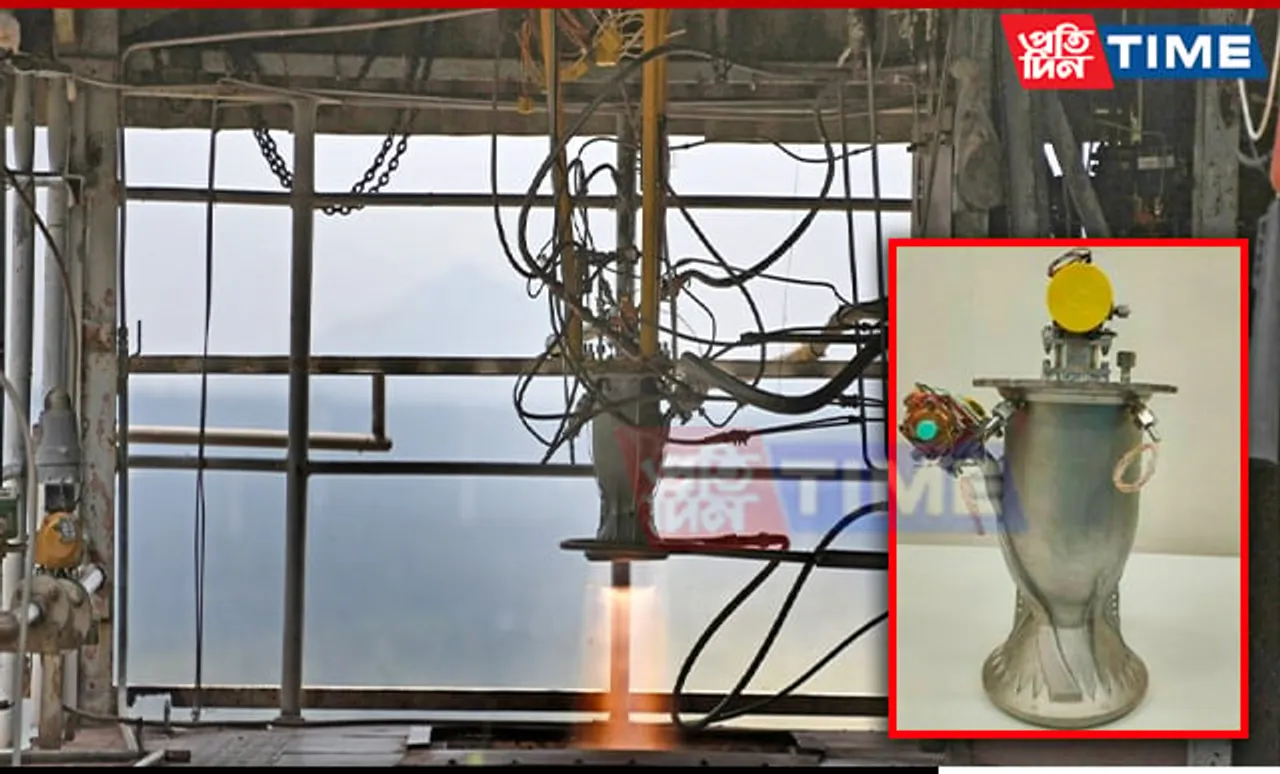

The manufacturing of the engine was done in the Indian industry (M/s WIPRO 3D), and the engine was hot tested at ISRO Propulsion Complex, Mahendragiri.
Detailed flow and thermal modelling, structural simulation, and cold flow characterisation of the proto hardware were carried out to gain confidence for the hot test. Consequently, four successful developmental hot tests of integrated engines were conducted for a cumulative duration of 74 s which validated the engine performance parameters.
